Reference Plots
|
|
If there is a Readout Time above 200 ms (either on the plot or in the Overflow), note this run in the logbook.
|
|
|
If there is a red square in these plots, check the GMBrowser to see if the box is still red. If it isn't, send an email to the ES.
|
|
|

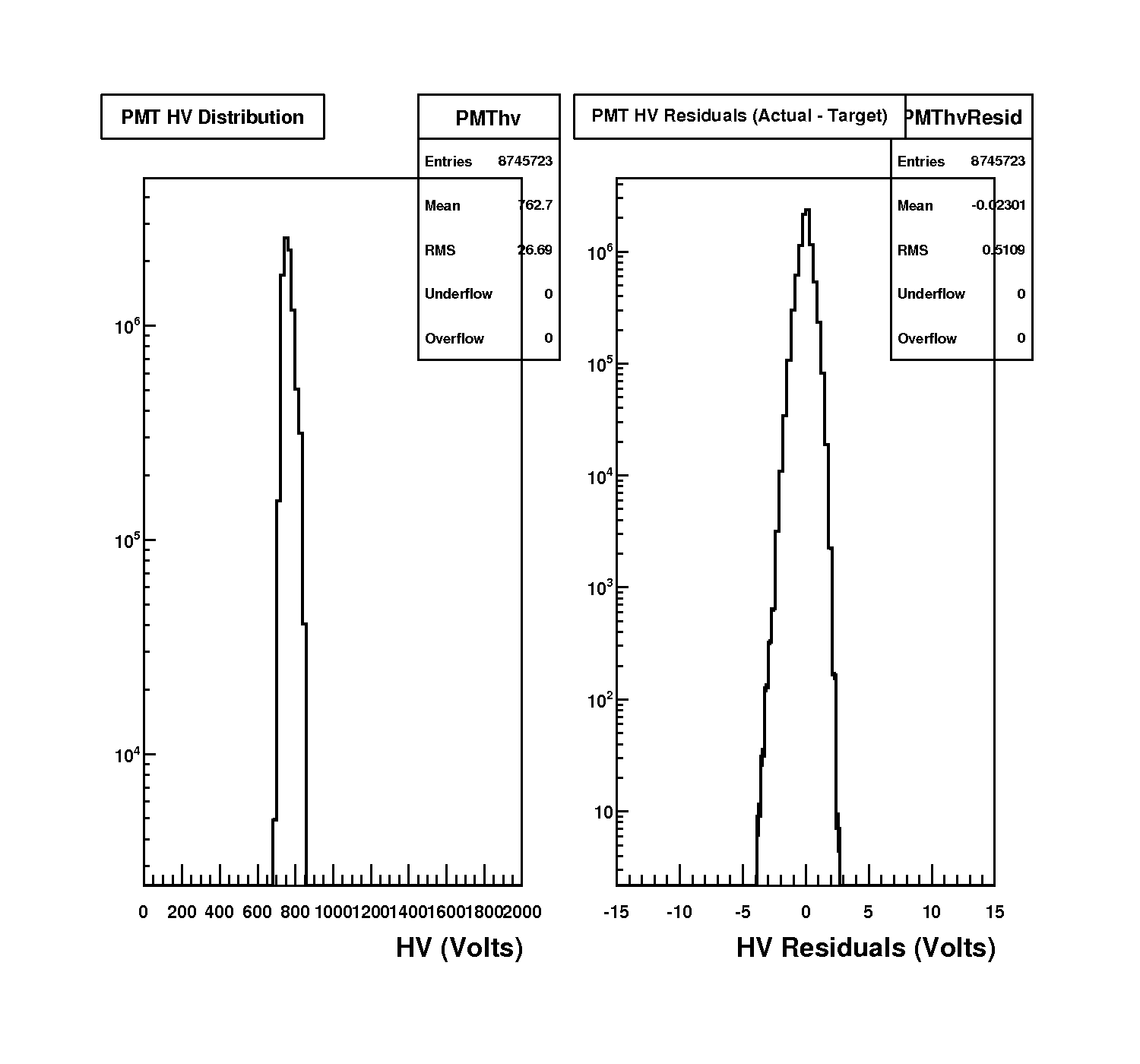

Left: If there are entries with HV < 600 Volts, contact ES. Right: If there are entries outside the peak, contact ES.
|
Left: If there are entries with HV < 600 Volts, contact ES. Right: If there are entries outside the peak, contact ES.
|
|
These plots depend on beam intensity.
|
|
|
If there is a high peak (at least twice as high as the rest of the entries), please contact ES.
|
|
|
There should be a gap before the distribution (0 entries at 0). If there is no gap between 0 and the start of the distribution, contact Nur or Howard.
|
|
|
The following channels should have entries: Top Left: 4 - 7, 27 - 30; Top Right: 1, 4, 6, 7, 25, 27, 28, 30; Bottom Left: 44 - 47, 51 - 54. The rest of the channels should be zero. If any channels are zero or especially hot or cold email Marianette or Dipak.
|
|
|
If one of these plots is completely white or one square is much hotter or colder than its neighbors, then contact Marianette or Dipak immediately.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
Avg Qhi Not Fired Crate 0
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
Avg Qhi Not Fired Crate 1
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
If there are consecutive channels missing, put note in ECL, email minerva-ops, ES and RC. Missing more channels (1 or more PMT) contact ES.
|
|
|
